OPEL BCM ALL



OPEL BCM DELPHI 70F3379+93C86

OPEL BCM DELPHI 70F3238+93C86

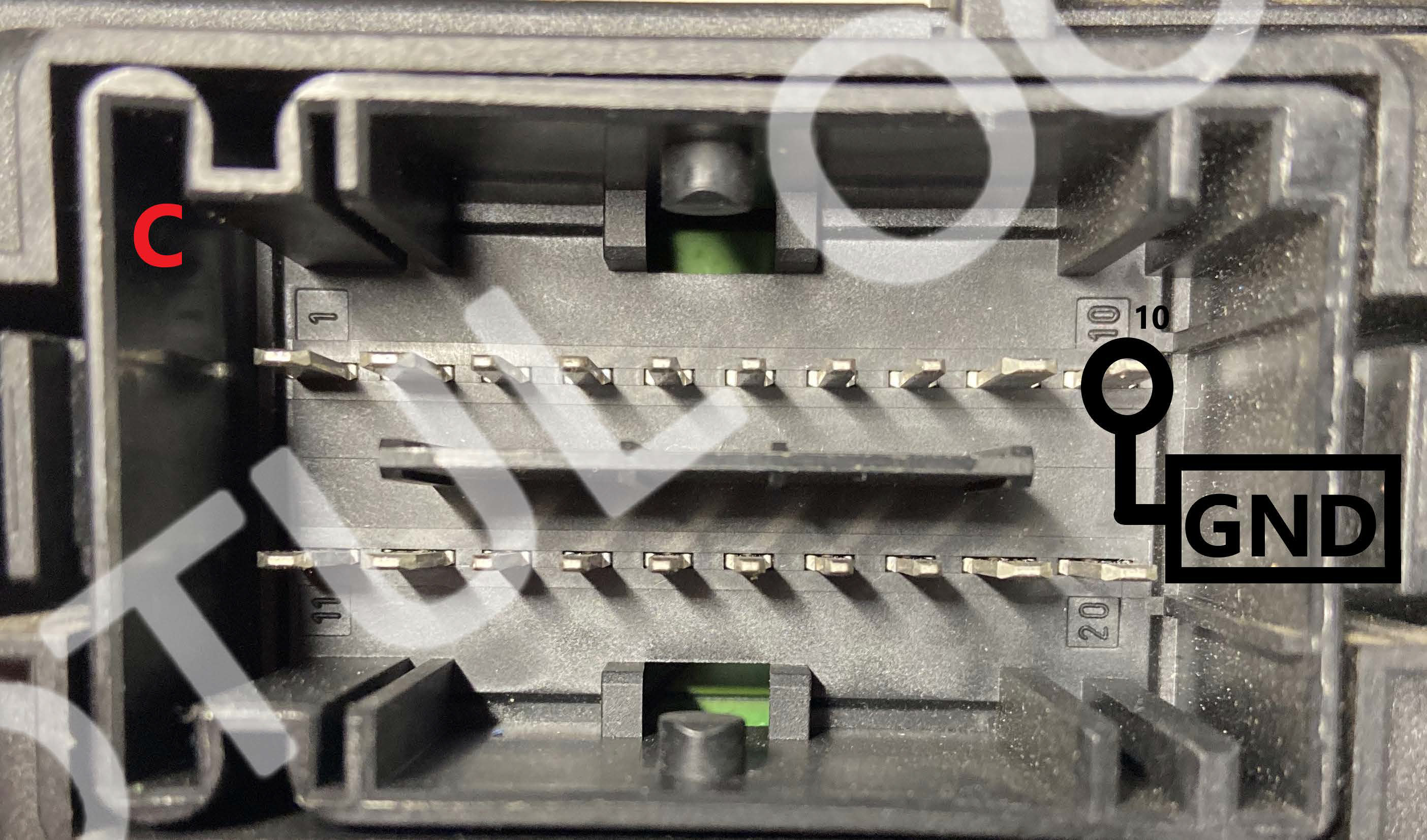

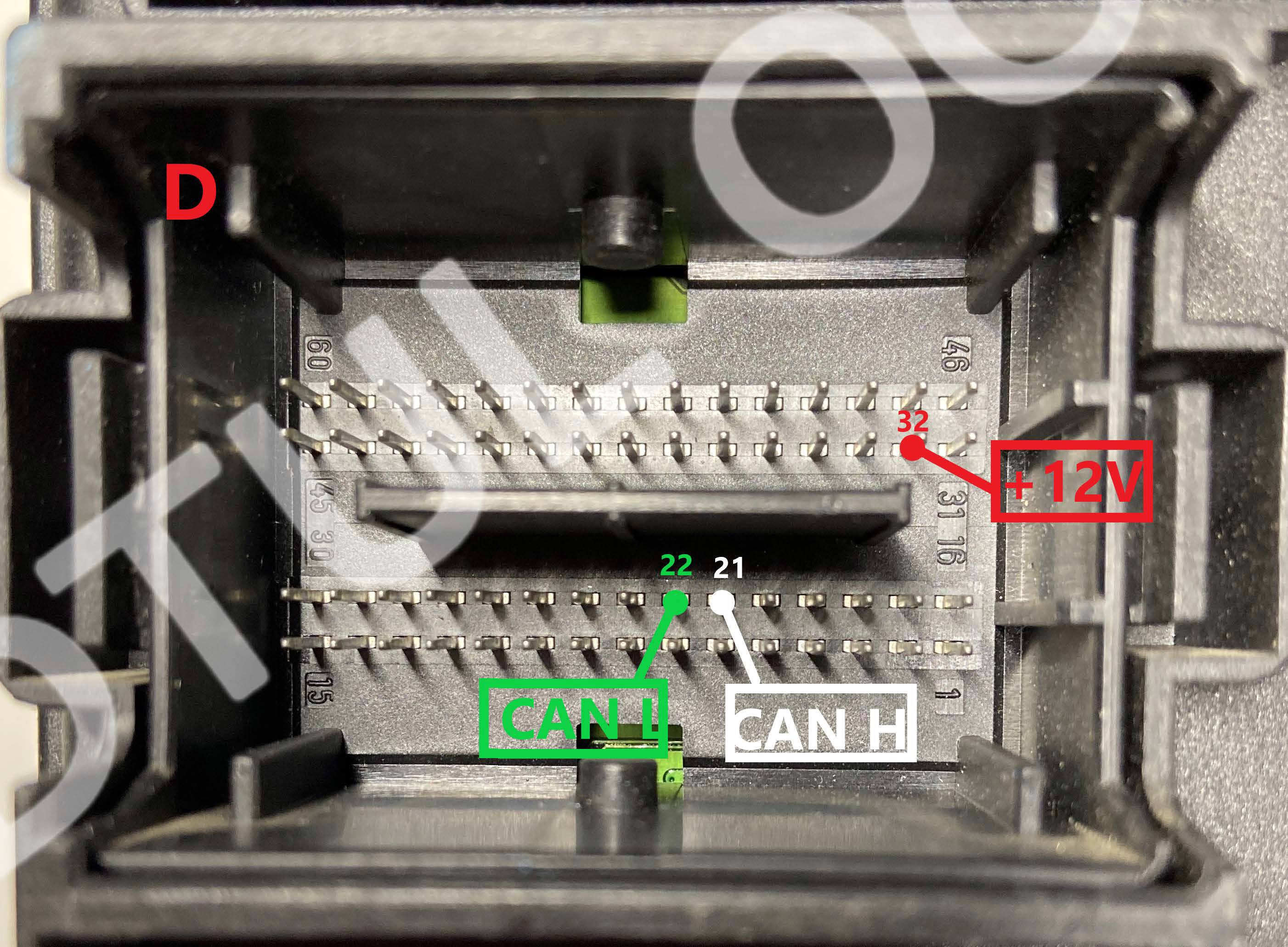

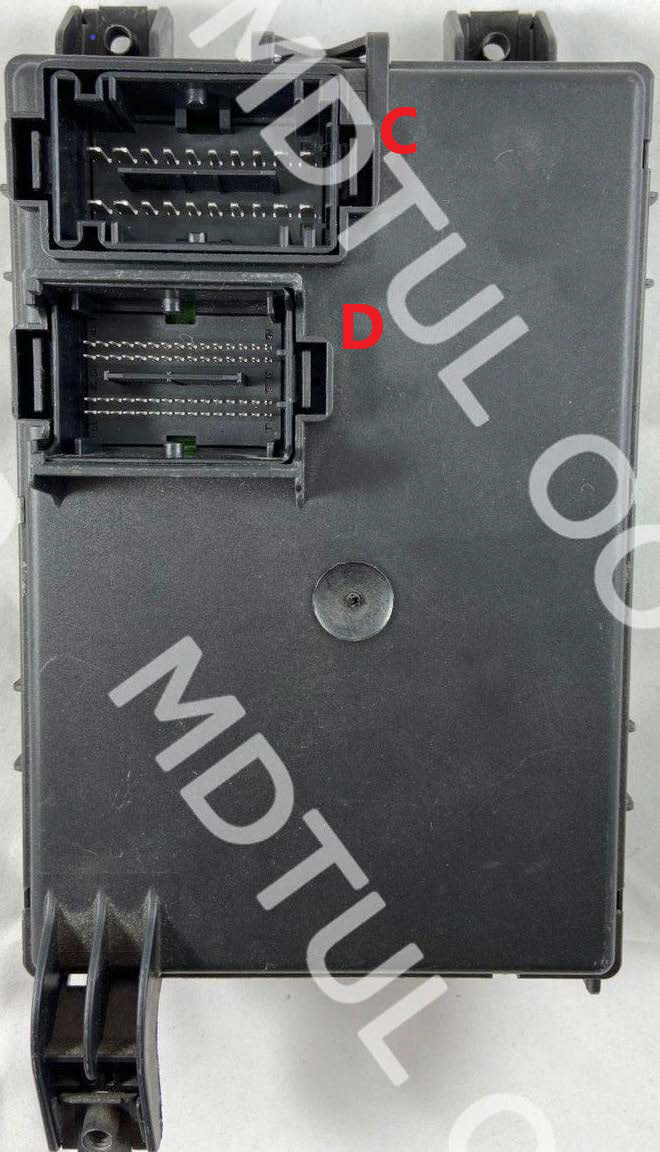

clip3008   clip3010







clip3009               clip3011









+ 12V

GND

CAN H

CAN L

A, D32

C10

D21

D22

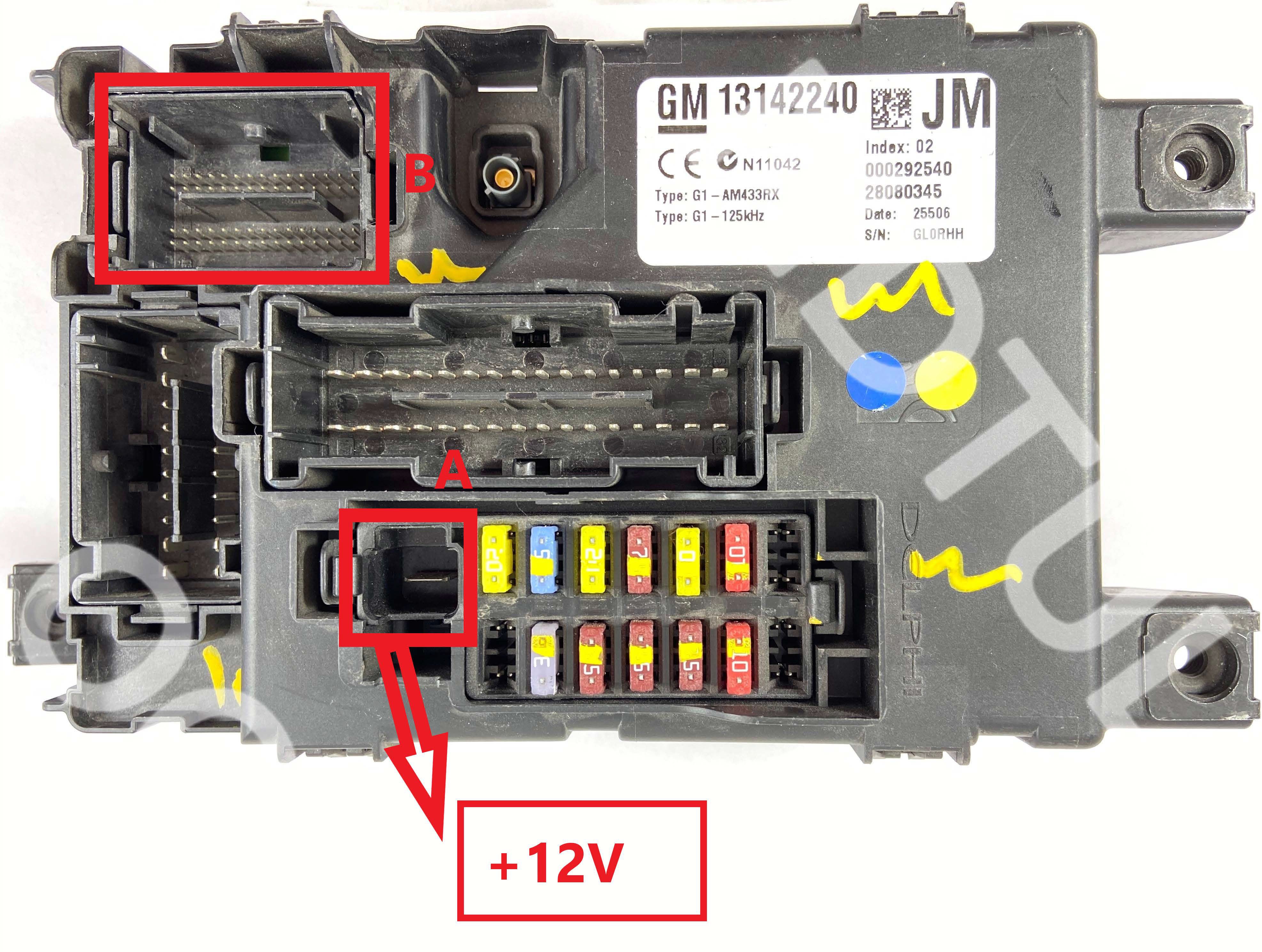

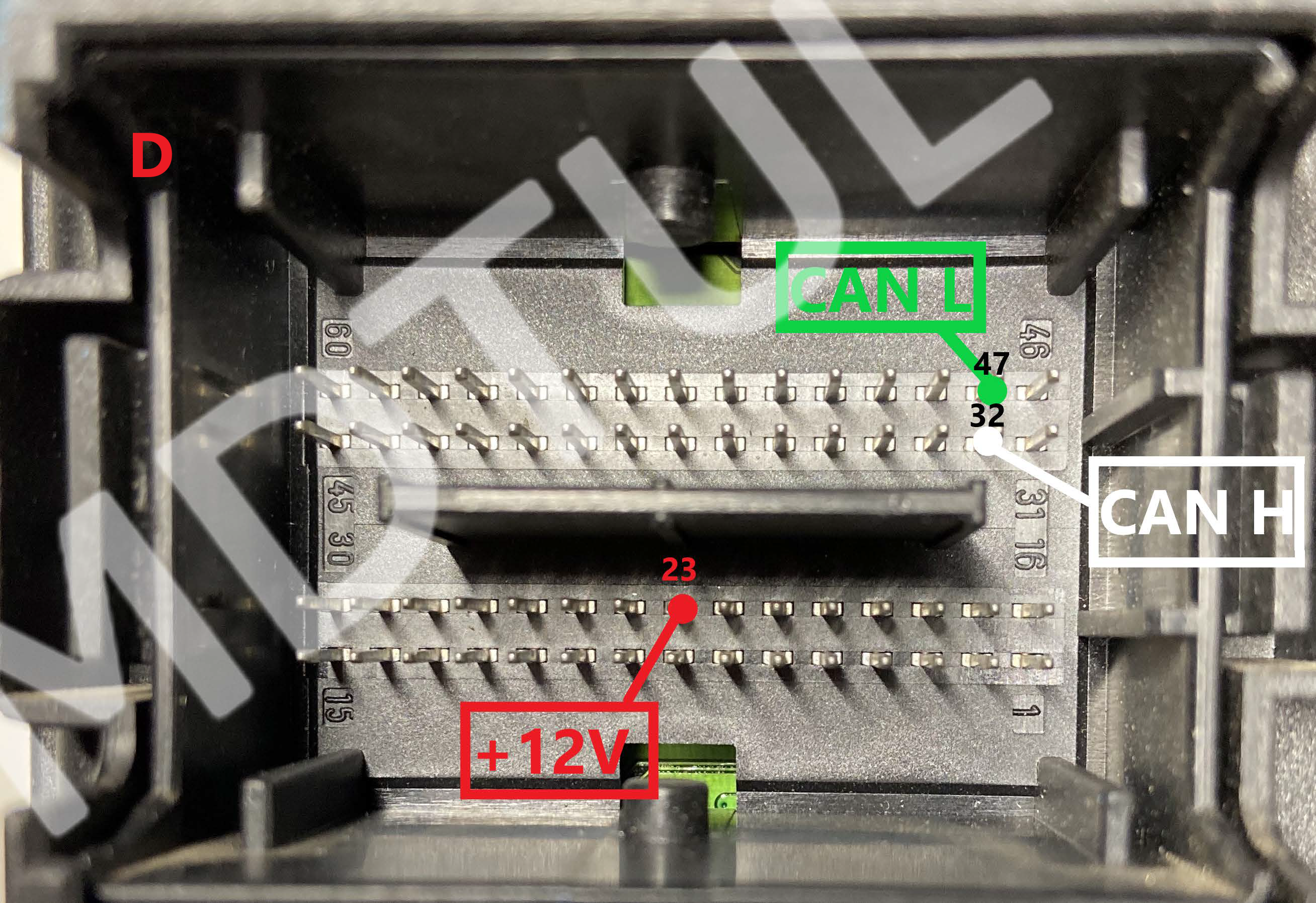

OPEL BCM DELPHI 70F3633





clip3008               clip3014



  clip3009 clip3016







+ 12V

GND

CAN H

CAN L

A, D23

C10

D32

D47

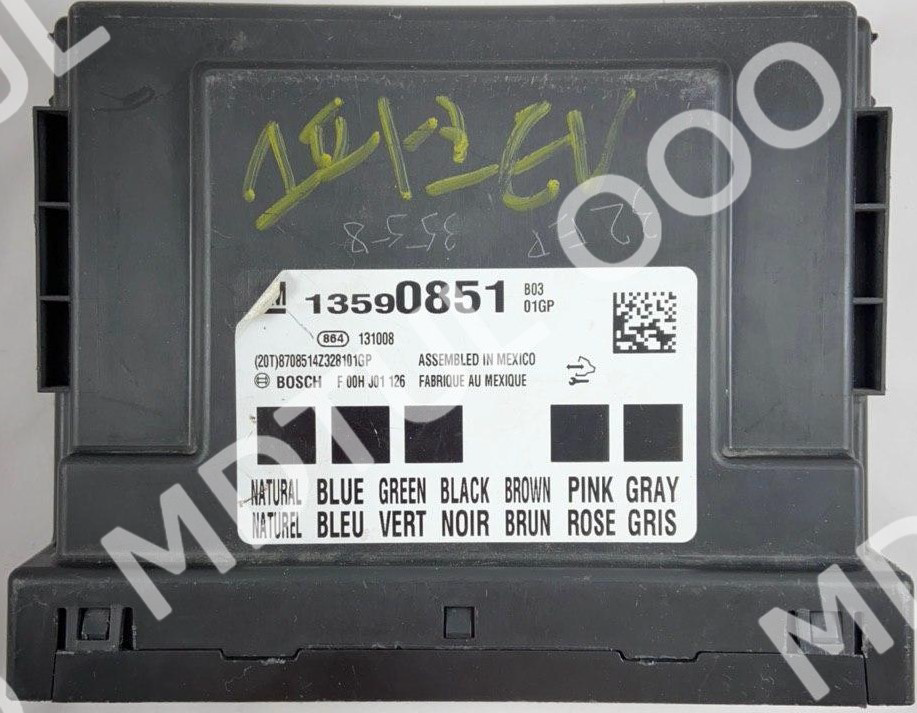

OPEL BCM BOSCH 70F3385+24C16

OPEL BCM BOSCH 70F3469+24C16

OPEL BCM BOSCH 70F3558+24C32

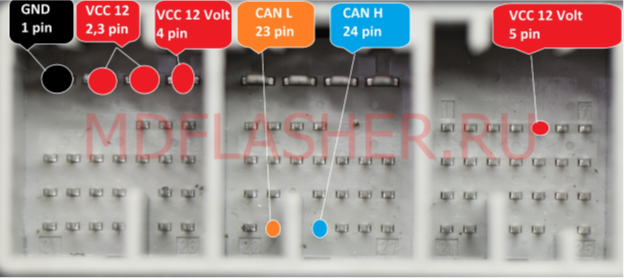

OPEL BCM CONTINENTAL 70F3469+95160(25160)

OPEL BCM CONTINENTAL 70F3558+95320(25320)



clip3017





clip3020
